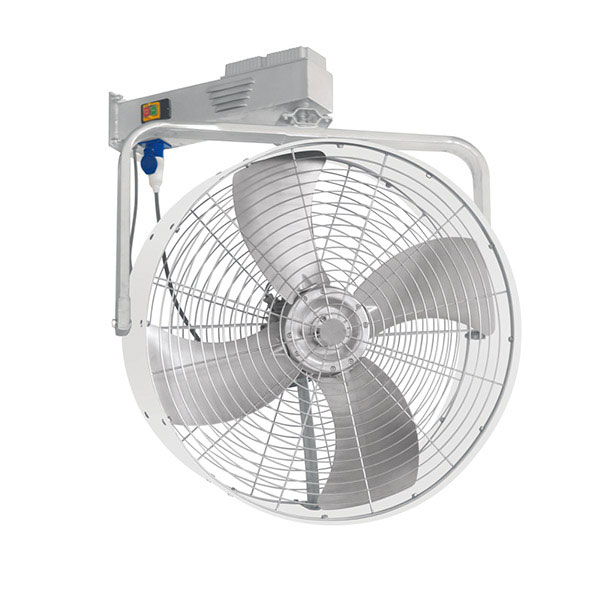

WMF-60 |

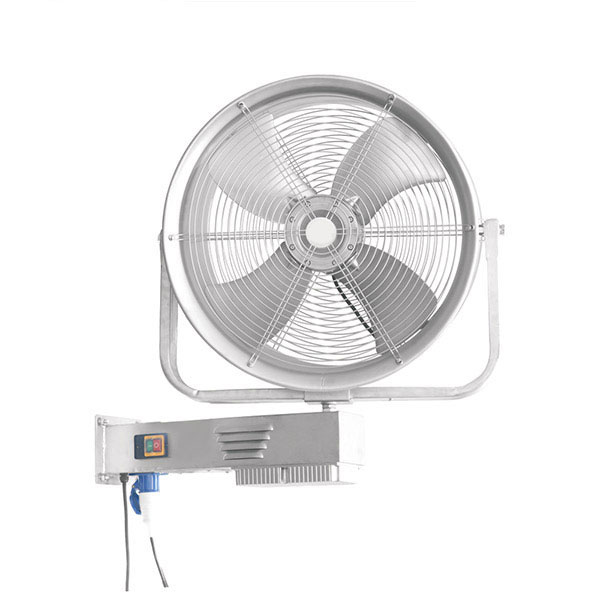

WMF-60T |
Wall-Mounting Fan
Features
- Saving energy
- Strong wind power
- Convenient to move
- Make low noise and light weight due to die-casting aluminum alloy.
- With good capacity,the reasonable structure and the strong suction.
Application
- It's special manufactured for underground cable maintaince, shipping making.
- Blowing bad gas when welding shipbui lding,canning,bridge.
- Exhaust for fire fighting,piping construction and in other violent working situation for ventilation.
| Diameter (inch) |
Voltag (V) |
Frequency (Hz) |
Speed (r/min) |
Watts (W) |
Capacity (m3/min) |
Static (pa) |
Noise dB (A) |
| 24" | 220-240 | 50/60 | 960/1120 | 250/300 | 130/140 | 80 | 60 |
| 28" | 220-240 | 50/60 | 960/1120 | 350/420 | 150/160 | 100 | 63 |
| 32" | 220-241 | 50/60 | 720/850 | 350/420 | 165/175 | 110 | 65 |
| 36" | 220-241 | 50/60 | 720/850 | 450/520 | 200/220 | 125 | 68 |
