SHT Series

SHT Series

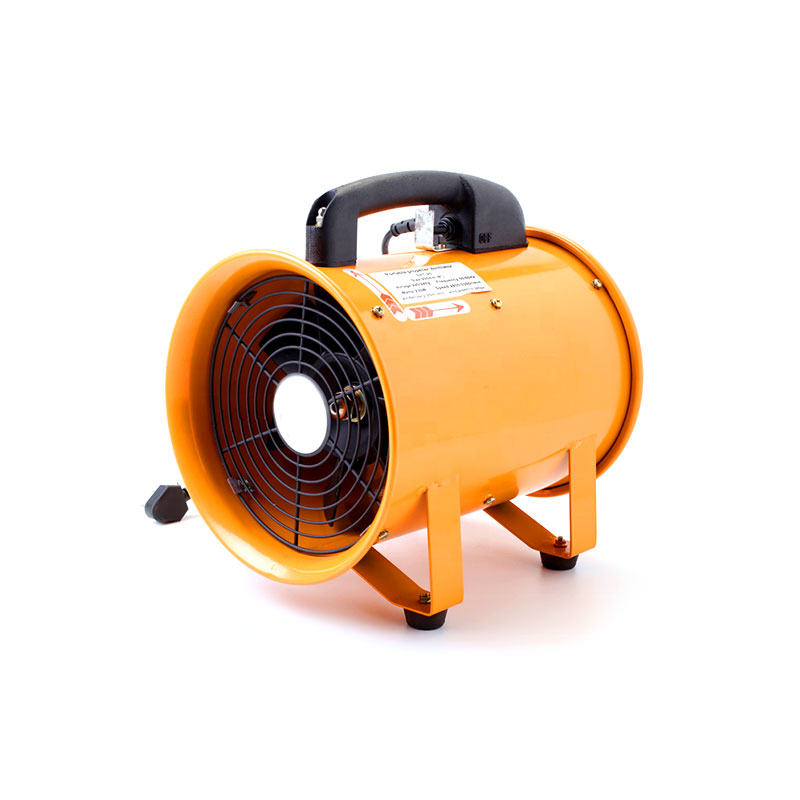

SHT-20,25,30

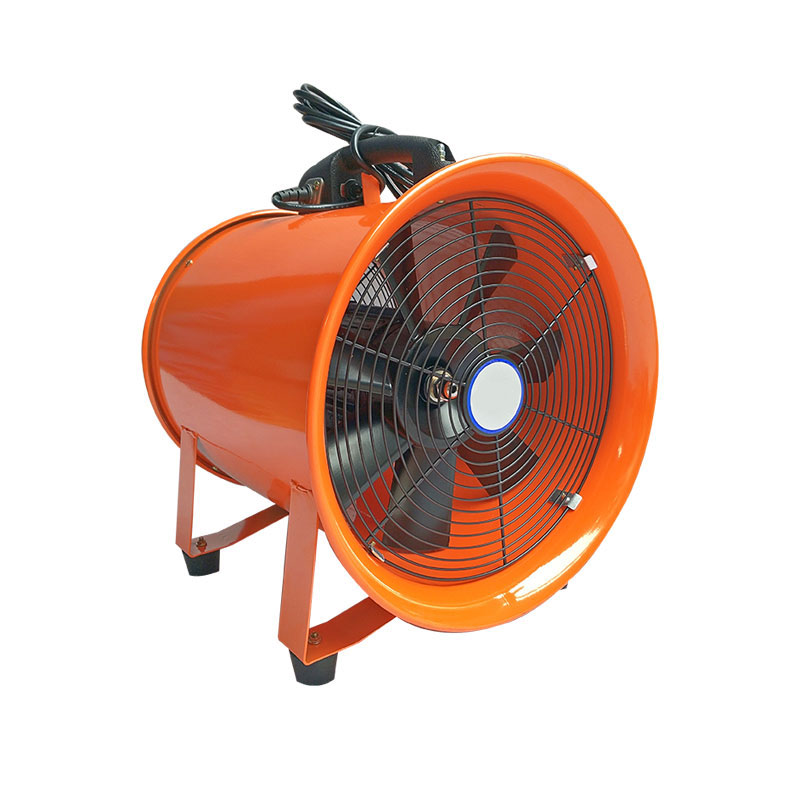

SHT-40

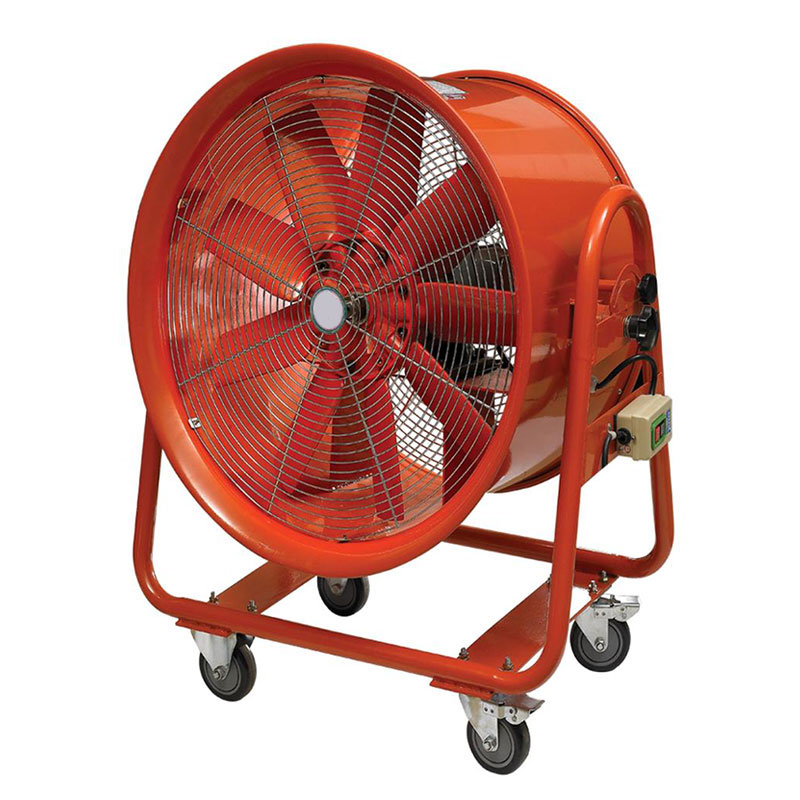

SHT-50,60

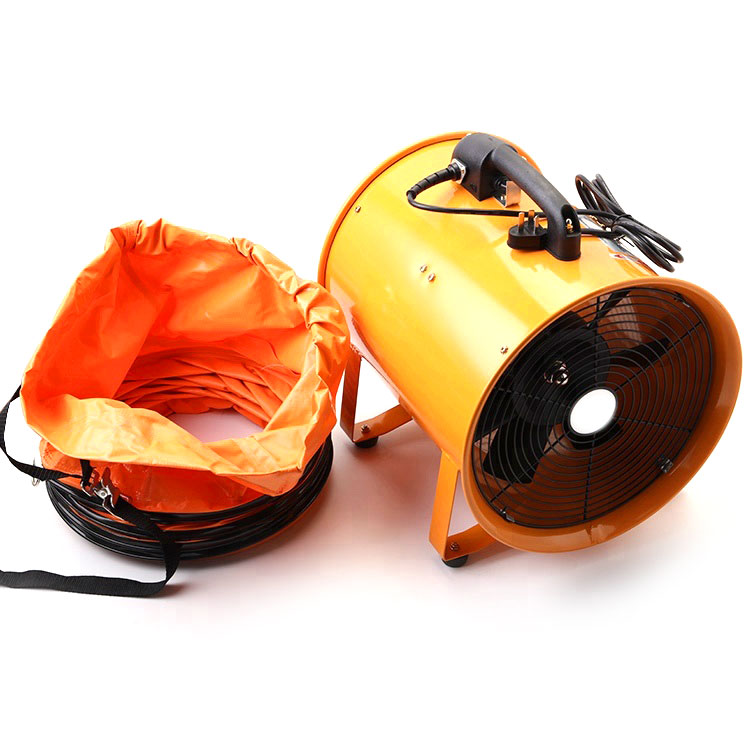

Product Description

  • Ventilator shell: made of hot-dipped galvanized sheet which has spray painted automobile coating on its surface
  • Impeller: made of aluminum casting alloy blades.
  • Fan guard: dusting, zinc coating
  • Switch: Push button.
  • Intergrated plastic handle for easy carrying.
  • Motor: It is wrap around with international standard copper wire
  • With radiating rib aluminum casting integrated motor shell.

Application

  • Exhaust and supply flesh air in remote or deep operating zone, confined space construction and other bad air environment.
  • Exhausting welding waste gas, smoke, dust, the smell of paint during shipbuilding and maintenance.
  • Field of machinery, chemical industry, plant warehouse, underground sinking and driving engineering



Technical Parameters

Model No. Diameter Voltage Phase Frequency Speed Power Air Flow Static Noise
SHT mm v   Hz rpm W m3/min pa dB(A)
SHT-20 200(8") 220 1 50/60 2800 230 25 245 63
SHT-25 250(10") 220 1 50/61 2800 320 43 294 68
SHT-30 300(12") 220 1 50/62 2800 520 65 373 71
SHT-40 400(16") 220 1 50/63 2800 1100 96 700 80
SHT-50 500(20") 220 1 50/64 2800 2000 200 1050 88
SHT-60 600(24") 220 1 50/65 1400 2200 240 1100 92
