Plastic Ventilation Fan And Duct

Plastic Ventilation Fan And Duct

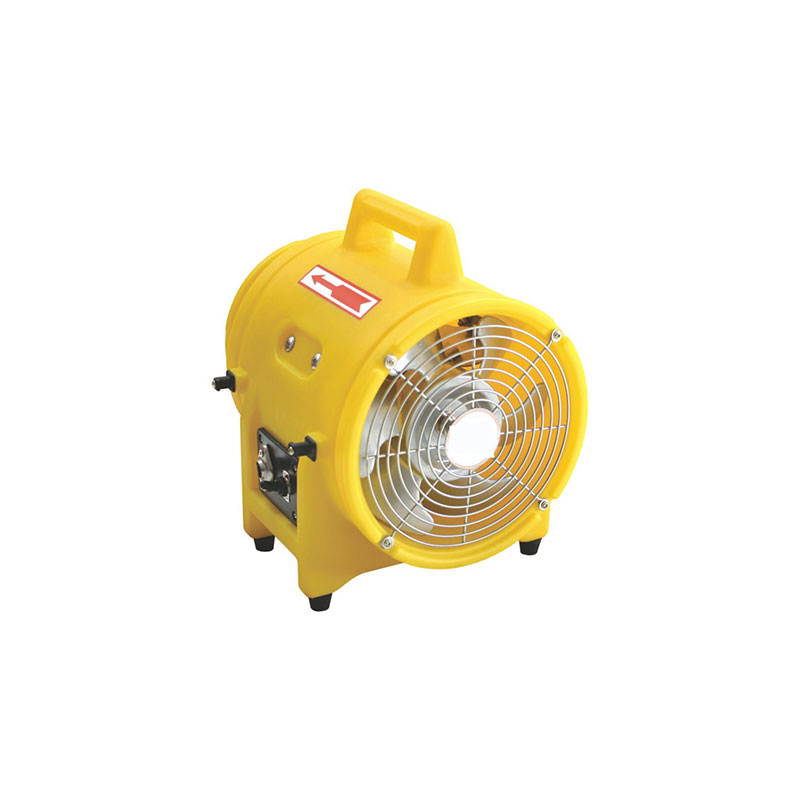

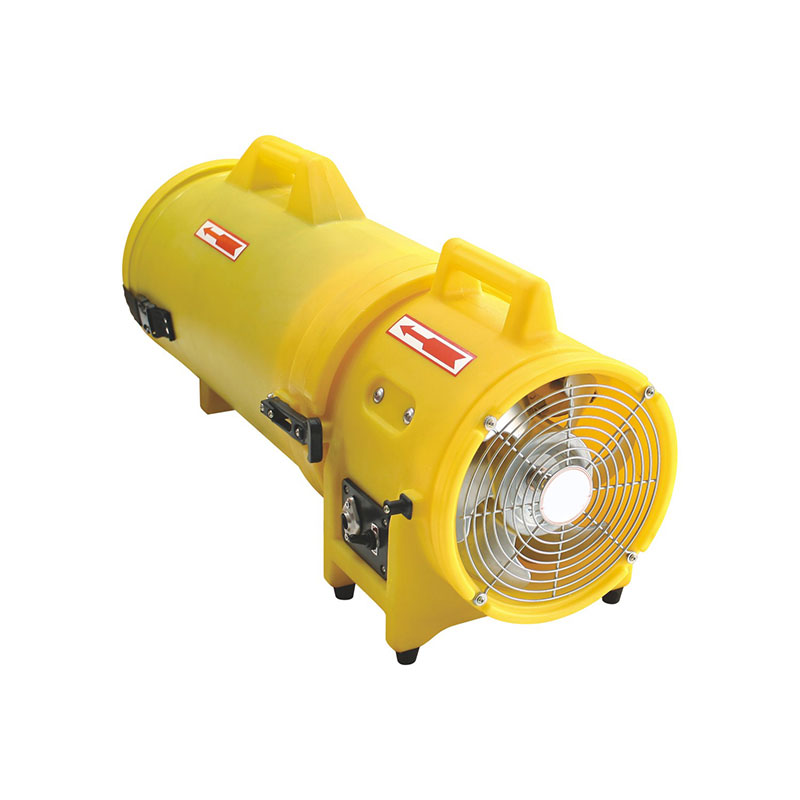

CTF-20,30


Features

  1. Saving energy
  2. Strong wind power
  3. Convenient to move
  4. Make low noise and light weight due to die-casting aluminum alloy.
  5. With good capacity,the reasonable structure and the strong suction.

Application

  1. It's special manufactured for underground cable maintaince, shipping making.
  2. Blowing bad gas when welding shipbui lding,canning,bridge.
  3. Exhaust for fire fighting,piping construction and in other violent working situation for ventilation.






Model Diameter.
(mm)		 Voltage
(V)		 Frequency
(Hz)		 Speed
(r/min)		 Watts
(W)		 Capacity
(m3/min)		 Static
(pa)		 Noise dB
(A)
CTF-20 200(8") 220-240 50/60 2800/3300 180/230 25/30 245/295 61
CTF-30 300(12") 220-240 50/60 2800/3300 500/550 65/77 385/450 69

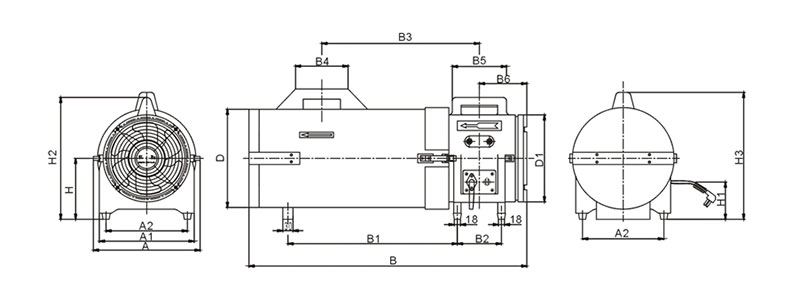

Model A A1 A2 H H1 H2 H3 B B1 B2 B3 B4 B5 B6 D D1
CTF-20 315 280 240 180 110 360 375 820 500 130 465 155 160 140 290 257
CTF-30 415 375 335 218 105 435 450 830 570 180 400 155 160 158 390 375
