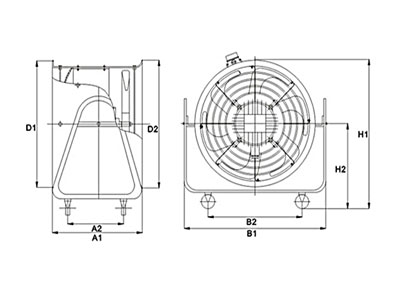

Installation Size
| Model | D1 | D2 | H1 | H2 | A | A1 | A2 | A3 | B1 | B2 |
| CTF-20 | 220 | 272 | 325 | 160 | 345 | 247 | 210 | 40 | 210 | 170 |
| CTF-25 | 280 | 325 | 375 | 190 | 355 | 247 | 210 | 60 | 220 | 175 |
| CTF-30 | 330 | 380 | 425 | 2202 | 380 | 265 | 225 | 60 | 265 | 220 |
| Model | L | D1 | D | H |
| CTF-40 | 450 | 480 | 403 | 530 |
| Model | D1 | D2 | H1 | H2 | A1 | A2 | B1 | B2 |
| CTF-45 | 485 | 530 | 720 | 455 | 480 | 325 | 625 | 375 |
| CTF-50 | 538 | 580 | 770 | 480 | 480 | 325 | 675 | 425 |
| CTF-60 | 635 | 680 | 870 | 530 | 570 | 415 | 775 | 525 |
| CTF-70 | 735 | 780 | 970 | 580 | 570 | 415 | 875 | 625 |
| CTF-80 | 835 | 880 | 1070 | 630 | 580 | 425 | 975 | 725 |
| Technical Parameters | ||||||||
| Model no. | Diameter | Static | Voltage | Frequency | Speed | Power | Airflow | Noise |
| Pa | V | Hz | r/min | w | m³/min | dB(A) | ||
| CTF-20 | 200 mm.8'' | 245/298 | 220 | 50/60 | 2800 | 180 | 25/30 | 61 |
| CTF-25 | 250 mm.10'' | 295/350 | 220 | 50/60 | 2800/3300 | 300/350 | 45/55 | 66 |
| CTF-30 | 300 mm.12'' | 385/450 | 220 | 50/60 | 2800/3300 | 500/550 | 65/77 | 69 |
| CTF-40 | 400 mm. 16'' | 700/780 | 220 | 50/60 | 2800/3300 | 1100 | 105/120 | 79 |
| CTF-45 | 450 mm. 18'' | 350/410 | 220 | 50/60 | 1400/1720 | 700/750 | 110/125 | 70 |
| CTF-50 | 500 mm. 20'' | 400/460 | 220, 380 | 50/60 | 1400/1720 | 1100 | 150/165 | 73 |
| CTF-60 | 600 mm. 24'' | 480/540 | 220, 380 | 50/60 | 1400/1720 | 1800/2000 | 240/260 | 77 |
| CTF-70 | 700 mm. 28'' | 580/650 | 220 | 50/60 | 1400/1720 | 2200/2400 | 310/330 | 79 |
| CTF-80 | 800 mm. 32'' | 500/550 | 220 | 50/60 | 960/1120 | 2200/2400 | 420/450 | 74 |
ข้อควรระวัง: โปรดตรวจสอบให้แน่ใจว่าได้กำหนดให้สวิตซ์เลือกแรกดันไฟฟ้าของแหล่งจ่ายไฟตรงกับไฟฟ้ากระแสสลับ (AC)
ของพัดลมเพ่อป้องกันการถูกทำลายของมอเตอร์
